HYBRID SURGICAL KIT
Instruments listed for the Hybrid osteotomy
The Hybrid surgical kit lists the drivers, drills, reamers, and instruments specified for the Hybrid osteotomy sequence. Use only the instruments and stops in the IFU for the selected fixture diameter and length.
SURGICAL KIT CONTENTS
Kit contents cover the listed Hybrid press-fit diameters. Drills are depth-marked and used with stops. Bone-level versus tissue-level handling is not interchangeable with screw-retained NTA or Shorter kits unless the IFU says so.

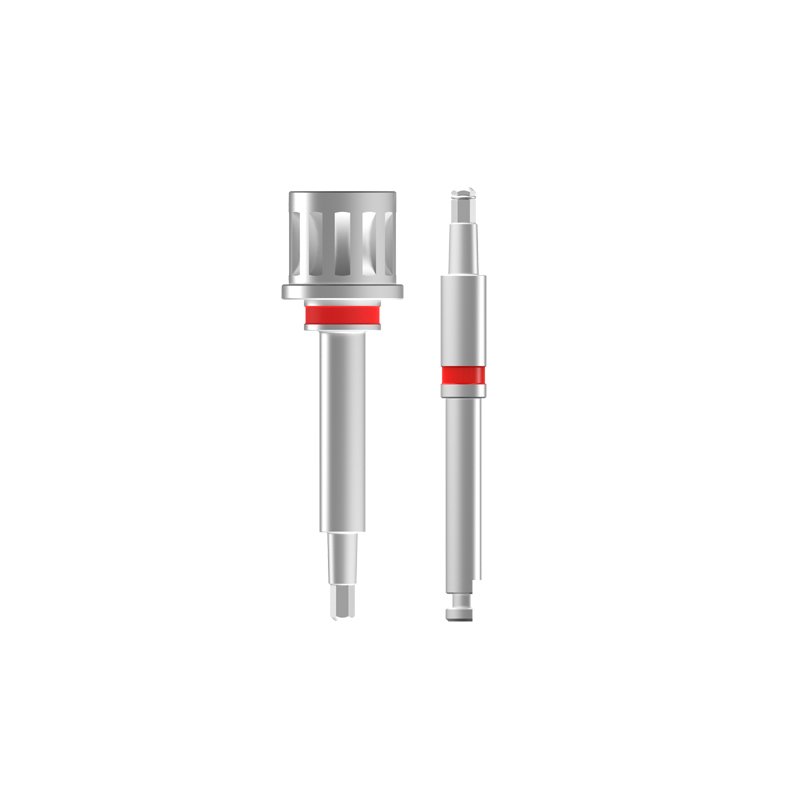

Ø 2.0 DRIVER
HYB-0-8-01 | HYB-0-8-02

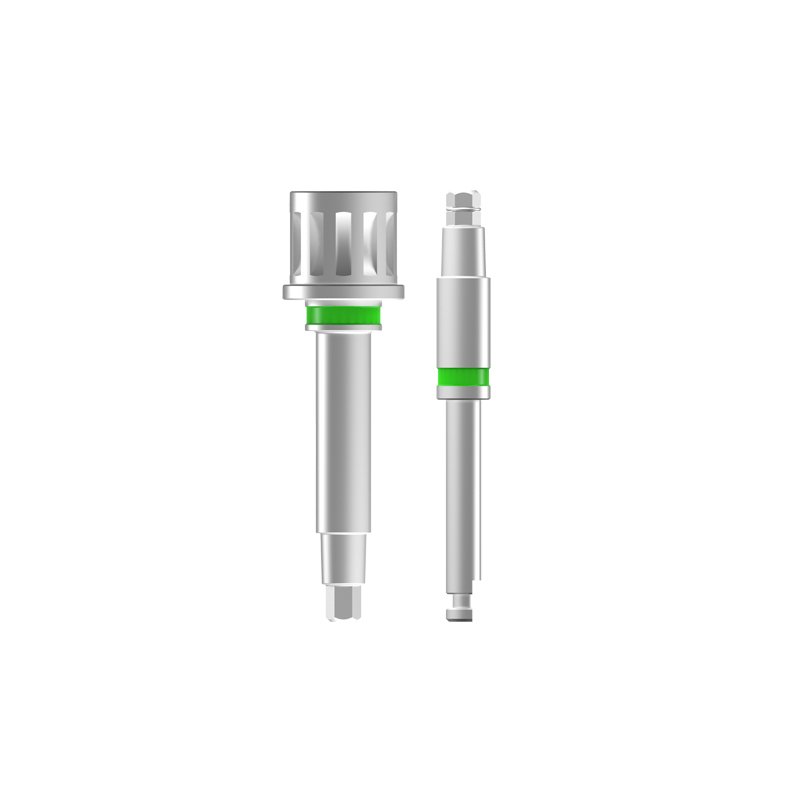

Ø 2.5 DRIVER
HYB-0-9-01 | HYB-0-9-02

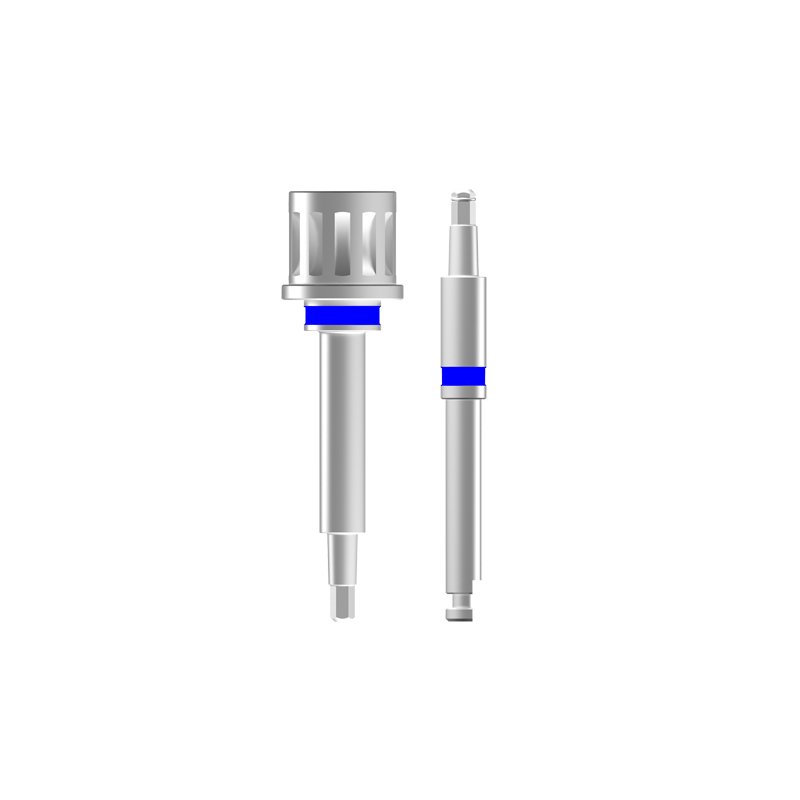

Ø 3.0 DRIVER
HYB-0-7-01 | HYB-0-7-02

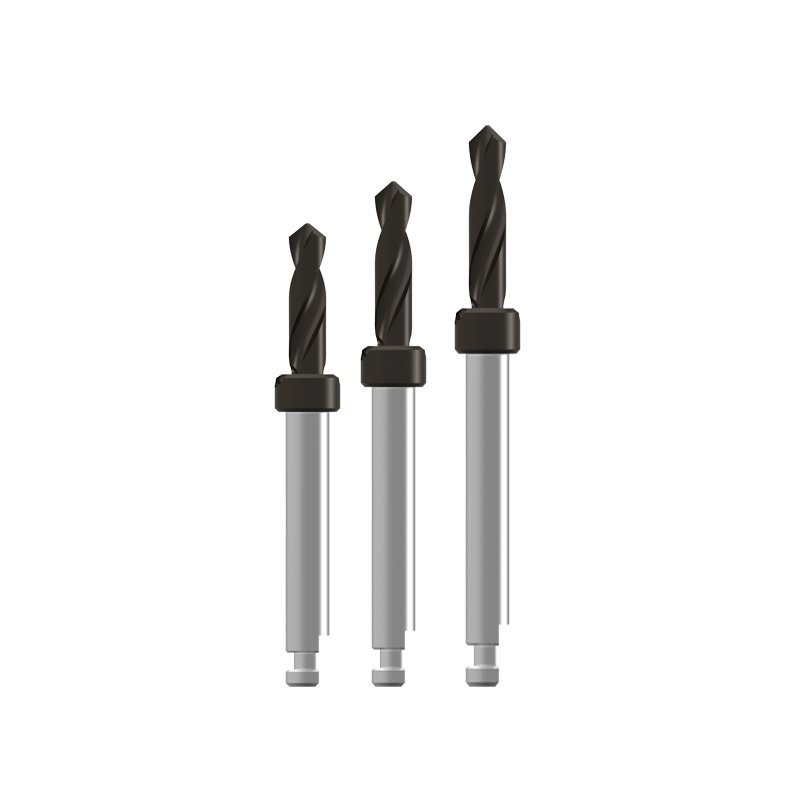

PILOT DRILLS
HYB-0-2-01 Ø 2.0 x 8.0 | HYB-0-2-02 Ø 2.0 x 10 | HYB-0-2-03 Ø 2.0 x 12
POINT DRILL
HYB-0-1-01

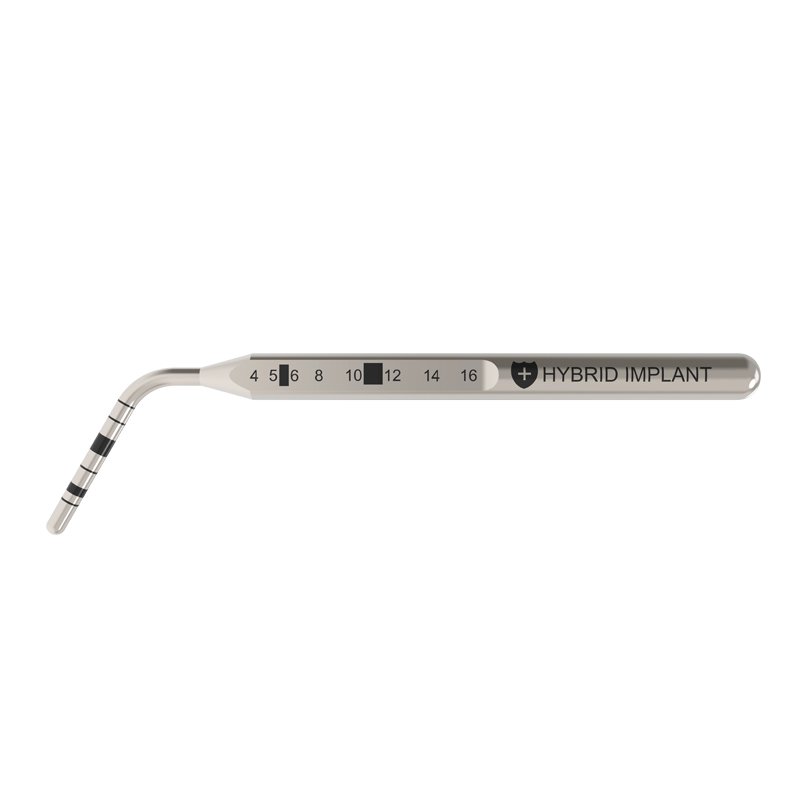

DEPTH GAUGE
HYB-0-12-01

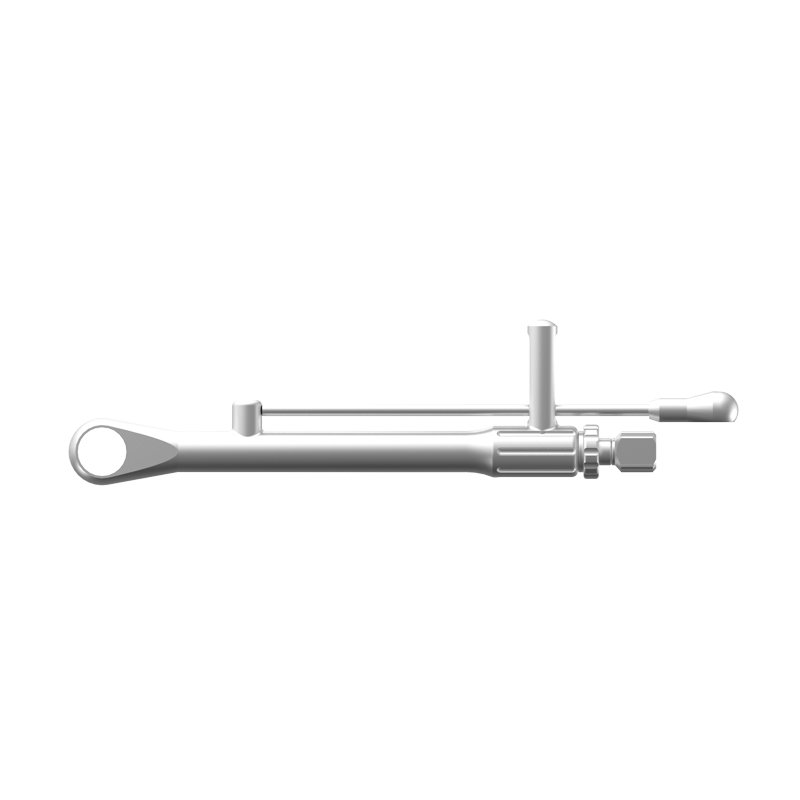

TORQUE RATCHET
HYB-0-11-01
DRILL EXT.
HYB-0-5-01
PARALLELING PIN
HYB-0-10-01 (0°) | HYB-0-10-02 (15°)
PLUG REMOVAL
HYB-0-6-01
GUIDE PIN
HYB-0-10-03 ( Ø 2.0) | HYB-0-10-04 ( Ø 2.5) | HYB-0-10-05 ( Ø 3.0)
ASR REAMER Ø 2.5
HYB-0-3-01 Ø 2.5 x 14
ASR REAMER Ø 3.0
HYB-0-3-05 Ø 3.5 x 8.0 | HYB-0-3-06 Ø 3.5 x 10 | HYB-0-3-07 Ø 3.5 x 12
ASR REAMER Ø 3.5
HYB-0-3-05 Ø 3.5 x 8.0 | HYB-0-3-06 Ø 3.5 x 10 | HYB-0-3-07 Ø 3.5 x 12
ASR REAMER Ø 4.0
HYB-0-3-08 Ø 4.0 x 8.0 | HYB-0-3-09 Ø 4.0 x 10 | HYB-0-3-10 Ø 4.0 x 12
ASR REAMER Ø 4.5
HYB-0-5-12 Ø 5.0 x 12
ASR REAMER Ø 5.0
HYB-0-5-12 Ø 5.0 x 12
