SHORTER SURGICAL KIT
Instruments for the osteotomy protocol
SHORTER surgical kits group the instruments used in the documented osteotomy sequence. Tray layout follows the drill protocol so each step can be completed with the matching instrument. Use only the instruments listed for the selected diameter and length, and follow the IFU.
SURGICAL KIT CONTENTS
The surgical kit is laid out for the osteotomy sequence. Bone-level and tissue-level implants in the listed diameters can be placed with the instruments in the tray. Drills are depth-marked and used with stoppers. Follow the kit protocol and the IFU.
ABUTMENT PL GAUGE
SHR-20-002
STRAIGHT HANDLE
SHR-19-003
POINT DRILL
SHR-04-000
PARALLELING PIN
SHR-02-000 (0°) | SHR-02-015 (15°)

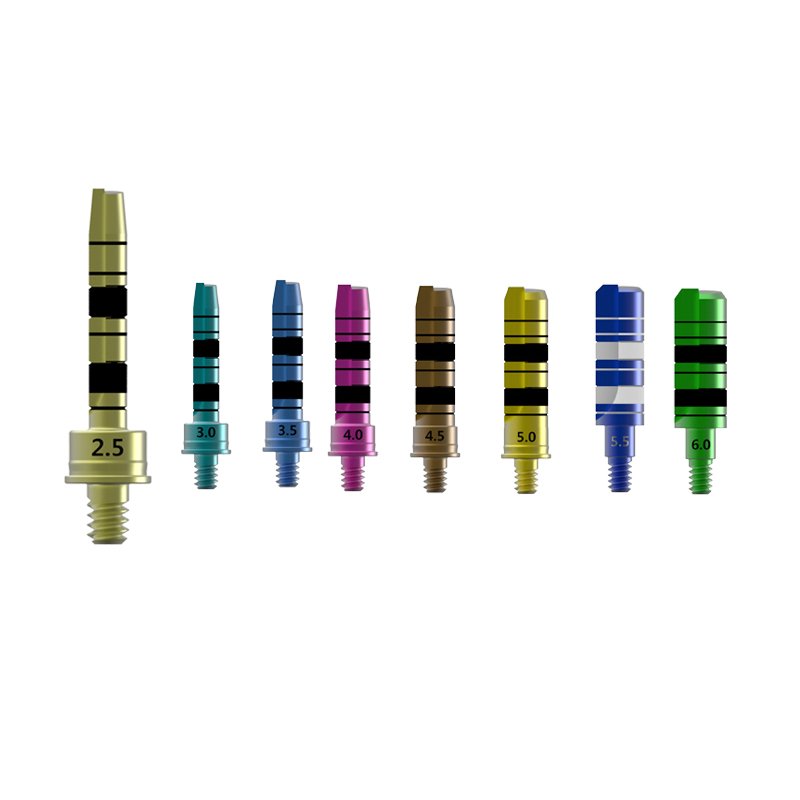

HAND REAMER
SHR-19-025 ( Ø 2.5 )
SHR-19-030 ( Ø 3.0 )
SHR-19-035 ( Ø 3.5 )
SHR-19-040 ( Ø 4.0 )
SHR-19-045 ( Ø 4.5 )
SHR-19-050 ( Ø 5.0 )
SHR-19-055 ( Ø 5.5 )
SHR-19-060 ( Ø 6.0 )

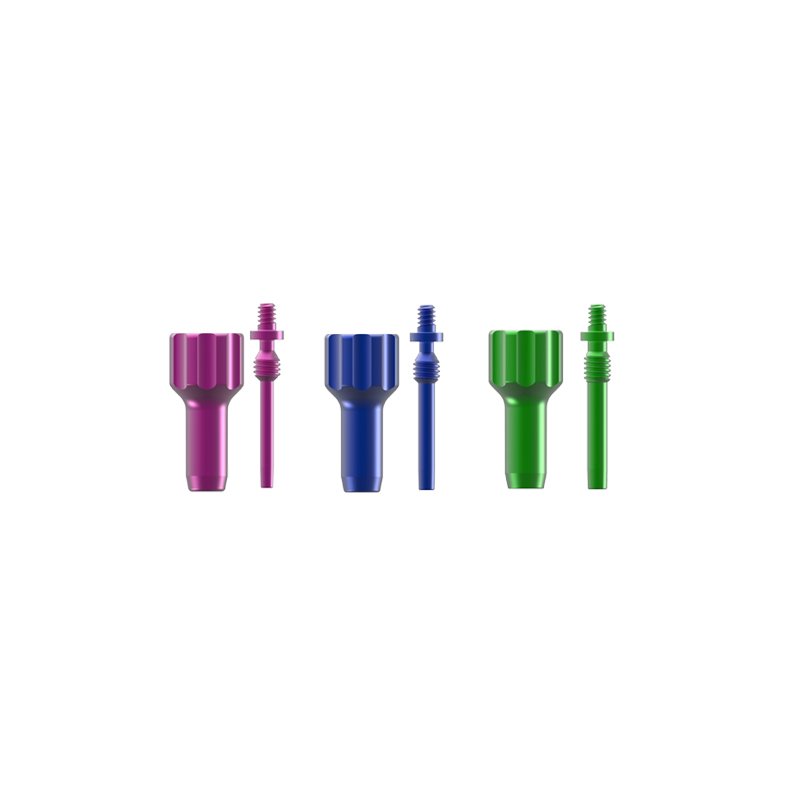

RETRIEVERS / INSERTER
SHR-17-020 ( Ø 2.0 )
SHR-17-025 ( Ø 2.5 )
SHR-17-030 ( Ø 3.0 )
IMPLANT DEPTH GAUGE
SHR-20-001
CURVED HANDLE
SHR-16-002
PILOT DRILL
SHR-04-001
ABT. SEATING TIP
SHR-15-040 (4.0)
SHR-15-065 (6.5)

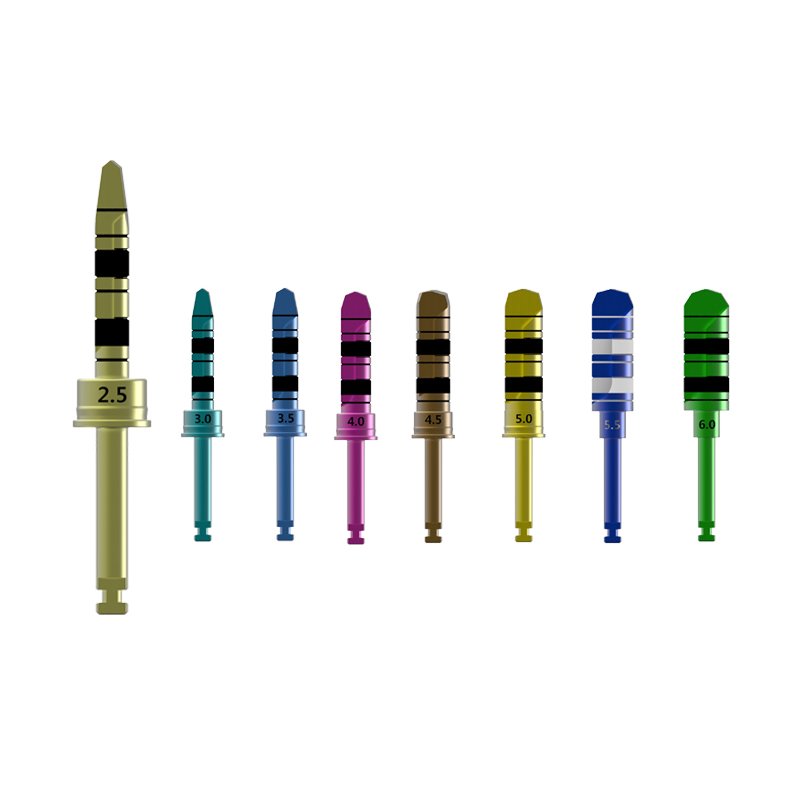

LATCH REAMER
SHR-01-025 ( Ø 2.5 )
SHR-01-030 ( Ø 3.0 )
SHR-01-035 ( Ø 3.5 )
SHR-01-040 ( Ø 4.0 )
SHR-01-045 ( Ø 4.5 )
SHR-01-050 ( Ø 5.0 )
SHR-01-055 ( Ø 5.5 )
SHR-01-060 ( Ø 6.0 )
SULCUS REAMER
SHR-17-040 ( Ø 4.0 )
SHR-17-050 ( Ø 5.0 )
SHR-17-065 ( Ø 6.5 )
HEALING PLUG CUTTER
SHR-19-004
REMOVER WRENCH
SHR-19-000
HAND REAMER EXT.
SHR-04-002
KNOB
SHR-17-002

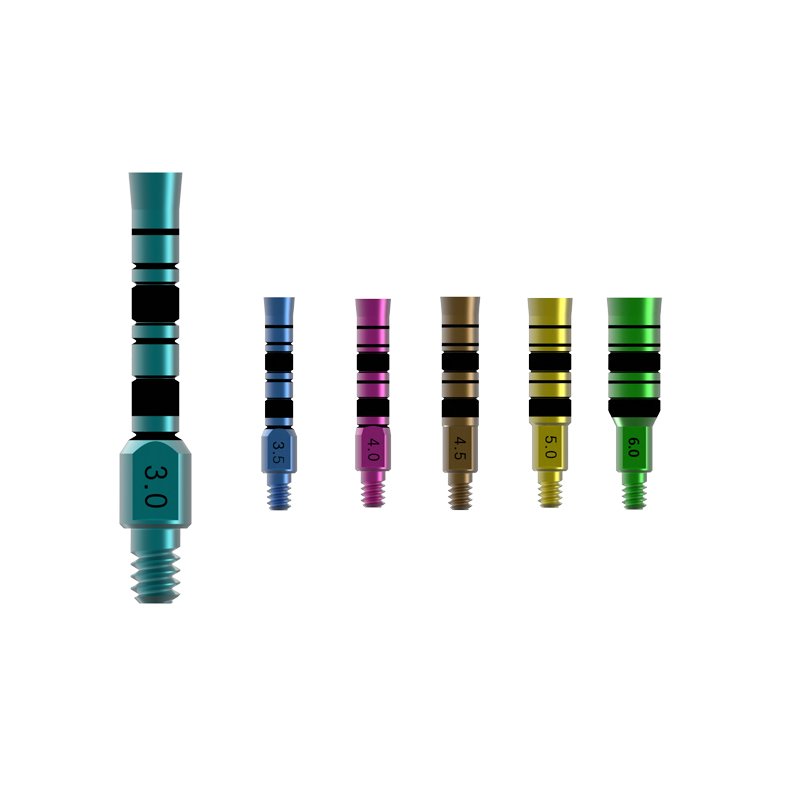

OSTEOTOME FOR INTERNAL SINUS LIFT
SHR-30-030 ( Ø 3.0 )
SHR-30-035 ( Ø 3.5 )
SHR-30-040 ( Ø 4.0 )
SHR-30-045 ( Ø 4.5 )
SHR-30-050 ( Ø 5.0 )
SHR-30-060 ( Ø 6.0 )
IMPLANT SEATING TIP
SHR-15-020 ( Ø 2.0 )
SHR-15-025 ( Ø 2.5 )
SHR-15-030 ( Ø 3.0 )
MALLET
SHR-17-001SHR-17-001
PREPARATION HOLDER
SHR-11-001
LATCH REAMER EXT.
SHR-04-003
HEALING PLUG REMOVAL
SHR-03-001
REAMER STOPER
SHR-05-050 ( Ø 5.0 )
SHR-05-060 ( Ø 6.0 )
SHR-05-080 ( Ø 8.0 )
SHR-05-090 ( Ø 9.0 )
SHR-05-110 ( Ø 11 )

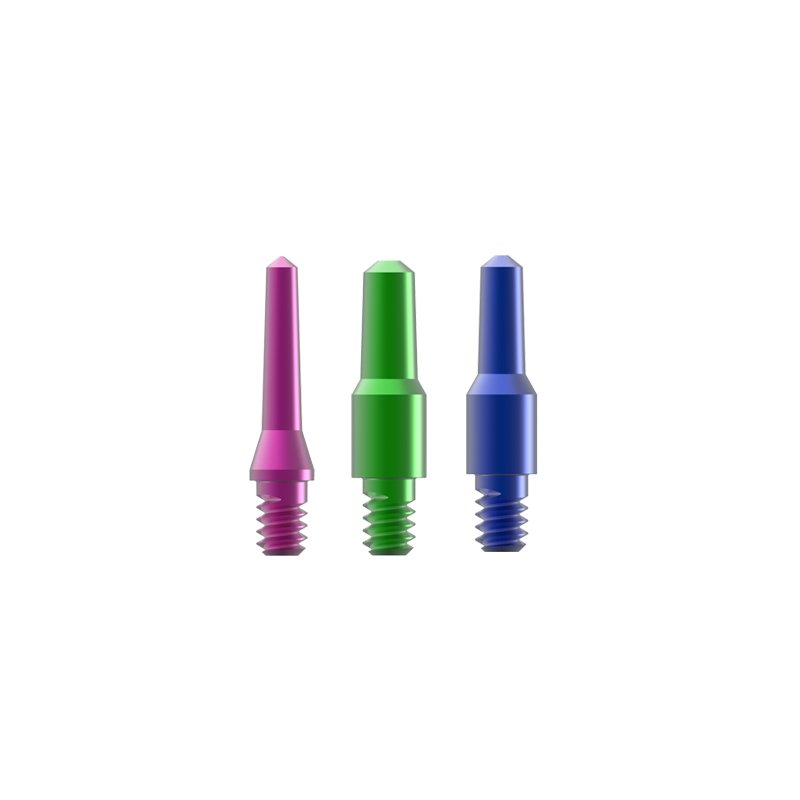

GUIDE PIN
SHR-14-020 ( Ø 2.0 )
SHR-14-025 ( Ø 2.5 )
SHR-14-030 ( Ø 3.0 )
BROCHURES AND DOCUMENTS
SHORTER SURGICAL KIT PROTOCOL
Download the Shorter implant surgical kit protocol (drill sequence and instrument use).
Request information
Use the form for specifications, library files, or kit protocol questions. The team will reply through the listed contact channel.
