3D tomography
When CBCT slices support implant placement, an intraoral record is taken and both datasets are imported for planning.
NTA DIGITAL
Digital library, scan body, and surgical guide
A surgical guide is a patient-specific 3D-printed stent for flapless implant placement in single- or multiple-tooth gaps. The guide is planned from digital records so that the osteotomy path and fixture position are set before surgery. Placement must follow the IFU for the selected implant and guide.
NTA Guide (surgical guide)
Planned osteotomy position: The patient-specific surgical guide is used to transfer the planned implant position into the jawbone.
Flapless protocol: When no flap is raised, sutures are not required. Soft-tissue disruption and post-operative swelling or pain are typically lower than with a flapped approach.
Immediate loading option: When the protocol allows, a prosthesis can be started without waiting for flap healing (immediate loading). Confirm primary stability and follow the IFU.
Digital implant planning steps
3D implant planning
The records are reviewed in planning software to assess bone volume and quality. Prosthetic implant positions are set and checked on the 3D view before surgery.
Implant placement
The surgical guide is seated, the osteotomy is marked through the sleeve, the site is prepared, and the implant is placed on the planned axis. A healing abutment is then seated. Follow the IFU.
NTA DIGITAL
NT-DigiBox Workflow
Integrated digital workflow, surgical instruments and prosthetic solutions to support predictable and efficient implant treatment.
You can choose your digital planning support either for the entire workflow or for specific stages, according to your needs.
- Full planning support
- Partial planning support
- Design only
- Surgical guide only
- 01
Digital evaluation and treatment planning
CBCT and intraoral data are evaluated to analyze bone volume, anatomical structures and define the optimal implant position.
Plan with us full process or just selected steps
02
Digital planning and design
We design a precise treatment plan with our digital software and create a surgical guide tailored to your case.
Precision in every step
03
NTA Guide
Patient-specific surgical guides manufactured with high precision for safe, minimally invasive and predictable implant placement.
- 04
Implant and prosthetic components
A wide range of high-quality implants and prosthetic components compatible with digital workflows for both screw-retained and cement-retained restorations.
- 05
Functional and esthetic result
Restoring function, stability and a natural appearance with long-term solutions tailored to each patient.
NT-DIGIBOX delivered to your door
06
NT-DIGIBOX
All the digital files, surgical guides and components you need are prepared and delivered to your clinic, so you can implement your plan with ease.
BROCHURES AND DOCUMENTS
NTA GUIDE
The surgical guide is used for flapless placement in single- or multiple-tooth gaps. It transfers the planned osteotomy to the site. Open the NTA Guide brochure for the documented workflow.
DIGITAL LIBRARY
CAD/CAM planning uses the digital library files for the selected implant connection. Download the digital library and matching scan-body files from the link.
DIGITAL ANALOG
Digital analogs transfer the implant position onto a 3D model for CAD/CAM. Use the analog and digital-library files specified for the selected NTA connection. Restorative planning must follow the IFU for that component.
Narrow and Regular options.
MULTI DIGITAL ANALOG
Digital analogs transfer the implant position onto a 3D model for CAD/CAM. Use the analog and digital-library files specified for the selected NTA connection. Restorative planning must follow the IFU for that component.
Product code: MELA-D 300
SCAN BODY
Digital analogs transfer the implant position onto a 3D model for CAD/CAM. Use the analog and digital-library files specified for the selected NTA connection. Restorative planning must follow the IFU for that component.
Narrow and Regular options.
MULTI SCAN BODY
Digital analogs transfer the implant position onto a 3D model for CAD/CAM. Use the analog and digital-library files specified for the selected NTA connection. Restorative planning must follow the IFU for that component.
Narrow and Regular options.
EZ SCREW
EZ Screw is a screw-retained prosthetic screw for digital workflows. The head geometry is designed so a titanium base is not required, reducing the risk of de-bonding and loosening. Digital library files allow a direct, screw-retained connection. It can be torqued up to 20 Ncm by hand in resin, PMMA, graphite, and zirconia.
Product code: NTEZ 2247
GUIDE KIT
The NTA Guide Kit brings together everything you need for your digital guided surgery workflow. Equipped with anchor screws for guide fixation and dedicated drills for cortical bone preparation, it helps streamline the transition from digital planning to implant placement.
ANGLED T-BASE
The angled T-Base abutment is used for digital capture of implant position and restorative delivery. It can be torqued at angles of up to 25°. Depending on the mesostructure, the abutment cemented to the titanium base can be used as a screw-retained crown.
Hex driver: 1.2mm
Hex and non-hex options
Tightening torque: 20Ncm (Narrow) – 30Ncm (Regular)
Narrow ( Ø 4.5 – Ø 5.5 ) – Regular ( Ø 4.5 – Ø 5.5 )
Gingival height: 1 – 2 – 3
T-BASE
The T-Base abutment is used for digital capture of implant position and restorative delivery. Depending on the mesostructure, the abutment cemented to the titanium base can be used as a screw-retained crown.
Hex driver: 1.2mm
Hex and non-hex options
Tightening torque: 20Ncm (Narrow) – 30Ncm (Regular)
Narrow ( Ø 4.5 – Ø 5.5 ) – Regular ( Ø 4.5 – Ø 5.5 )
Gingival height: 1 – 2 – 3

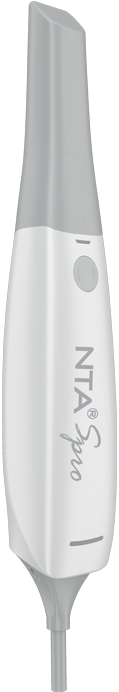

NTA S-PRO intraoral scanner
The NTA S-PRO intraoral scanner records color intraoral data and updates the scan as the wand moves:
Color intraoral scan: Hard and soft tissues are shown in color so they can be distinguished on screen.
Built-in anti-fog: The scan tip uses automatic heating to limit fogging so a pass can be completed without interrupting data capture.
Scan depth of field: Specified depth of field is 15 mm.
Cloud storage: Scan files can be stored in the cloud for transfer between clinic and lab.
