NTA SURGICAL KIT
Instruments for the osteotomy protocol
NTA surgical kits group the instruments used in the documented osteotomy sequence. Tray layout follows the drill protocol so each step can be completed with the matching instrument. Use only the instruments listed for the selected diameter and length, and follow the IFU.
SURGICAL KIT CONTENTS
The surgical kit is laid out for the osteotomy sequence. Bone-level and tissue-level implants in the listed diameters can be placed with the instruments in the tray. Drills are depth-marked and used with stoppers. Follow the kit protocol and the IFU.

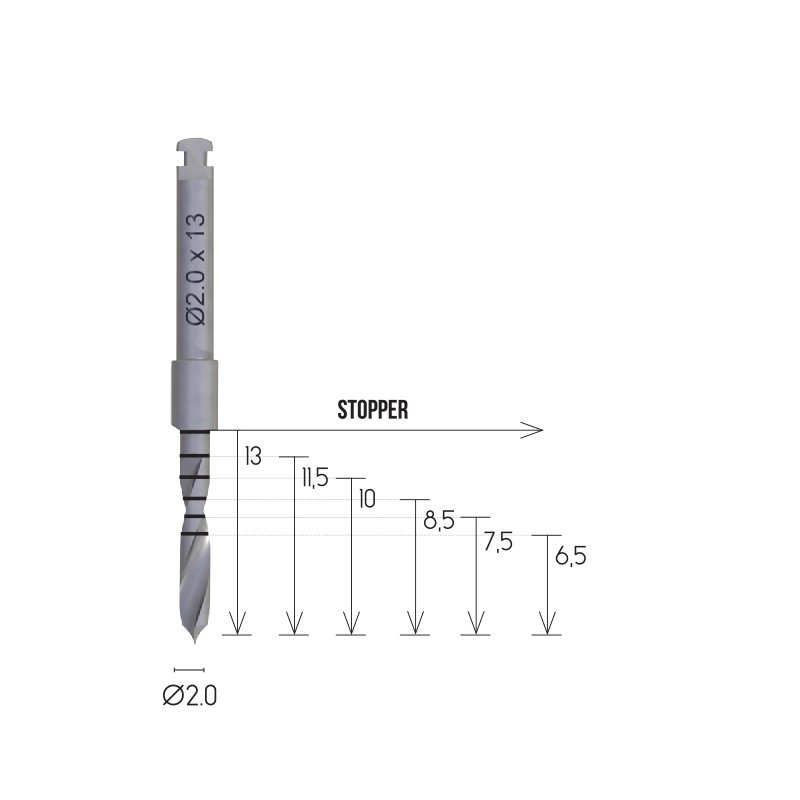

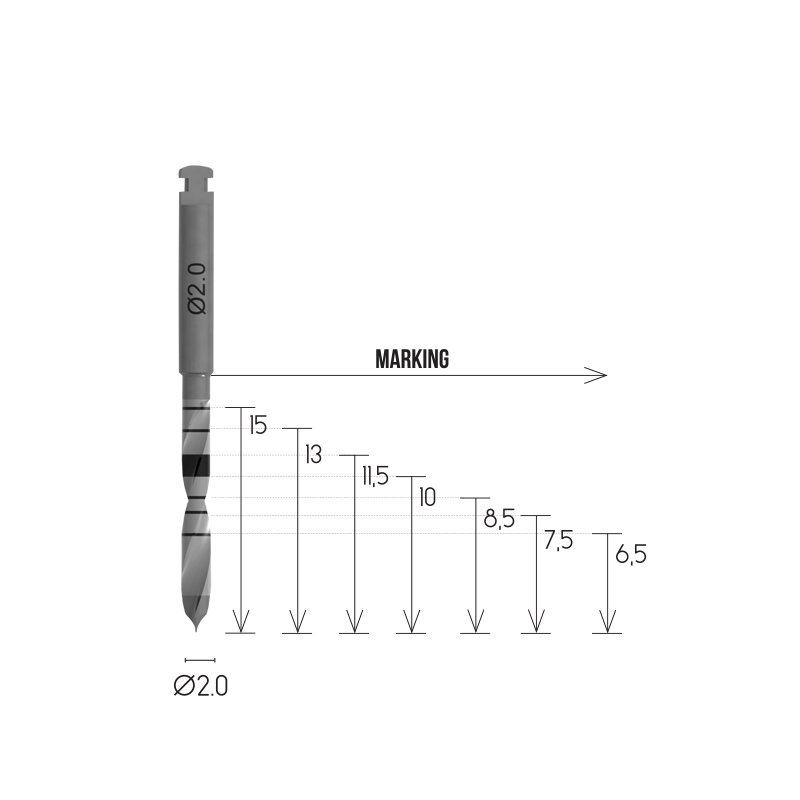

STRAIGHT TWIST DRILLS
NTA-0-2-01 Ø 2.0 x 6.5 mm
NTA-0-2-02 Ø 2.0 x 7.5 mm
NTA-0-2-03 Ø 2.0 x 8.5 mm
NTA-0-2-04 Ø 2.0 x 10 mm
NTA-0-2-05 Ø 2.0 x 11.5 mm
NTA-0-2-06 Ø 2.0 x 13 mm
FINAL DRILLS NARROW Ø 3.4
NTA-0-3-01 Ø 3.4 x 7.5 mm
NTA-0-3-02 Ø 3.4 x 8.5 mm
NTA-0-3-03 Ø 3.4 x 10.0 mm
NTA-0-3-04 Ø 3.4 x 11.5 mm
NTA-0-3-05 Ø 3.4 x 13.0 mm

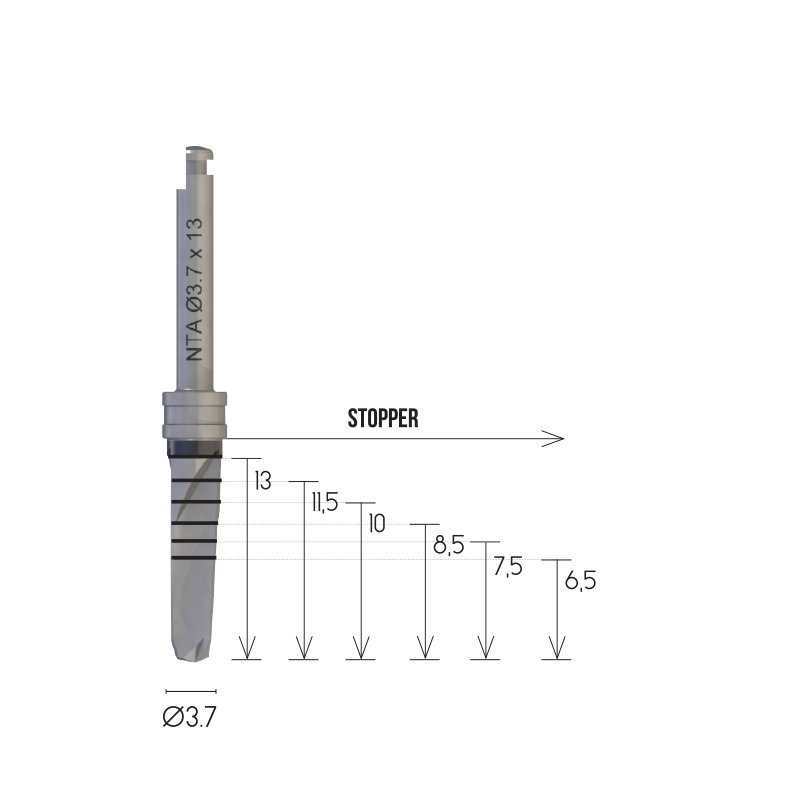

FINAL DRILLS REGULAR Ø 3.7
NTA-0-4-01 Ø 3.7 x 7.5 mm
NTA-0-4-02 Ø 3.7 x 8.5 mm
NTA-0-4-03 Ø 3.7 x 10.0 mm
NTA-0-4-04 Ø 3.7 x 11.5 mm
NTA-0-4-05 Ø 3.7 x 13.0 mm
FINAL DRILLS REGULAR Ø 4.2
NTA-0-5-01 Ø 4.2 x 7.5 mm
NTA-0-5-02 Ø 4.2 x 8.5 mm
NTA-0-5-03 Ø 4.2 x 10.0 mm
NTA-0-5-04 Ø 4.2 x 11.5 mm
NTA-0-5-05 Ø 4.2 x 13.0 mm

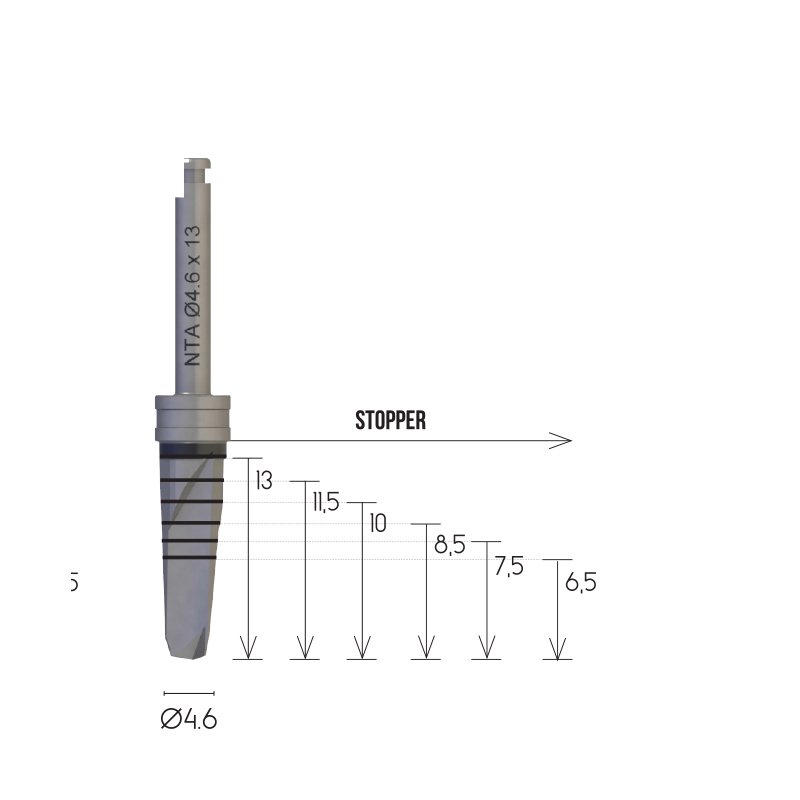

FINAL DRILLS REGULAR Ø 4.6
NTA-0-6-01 Ø 4.6 x 7.5 mm
NTA-0-6-02 Ø 4.6 x 8.5 mm
NTA-0-6-03 Ø 4.6 x 10.0 mm
NTA-0-6-04 Ø 4.6 x 11.5 mm
NTA-0-6-05 Ø 4.6 x 13.0 mm

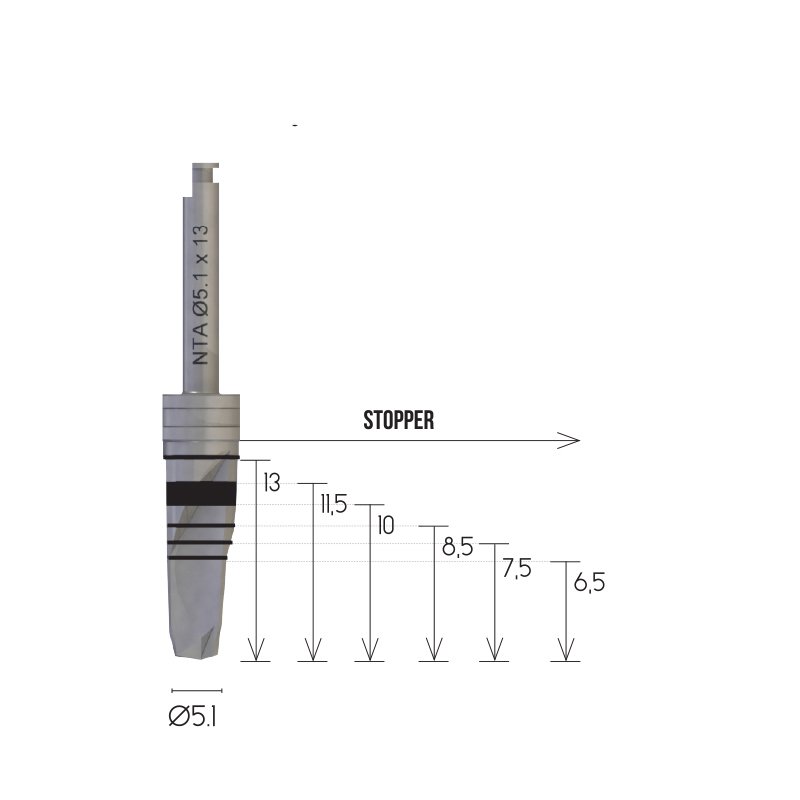

FINAL DRILL REGULAR Ø 5.1
NTA-0-7-01 Ø 5.1 x 13.0 mm

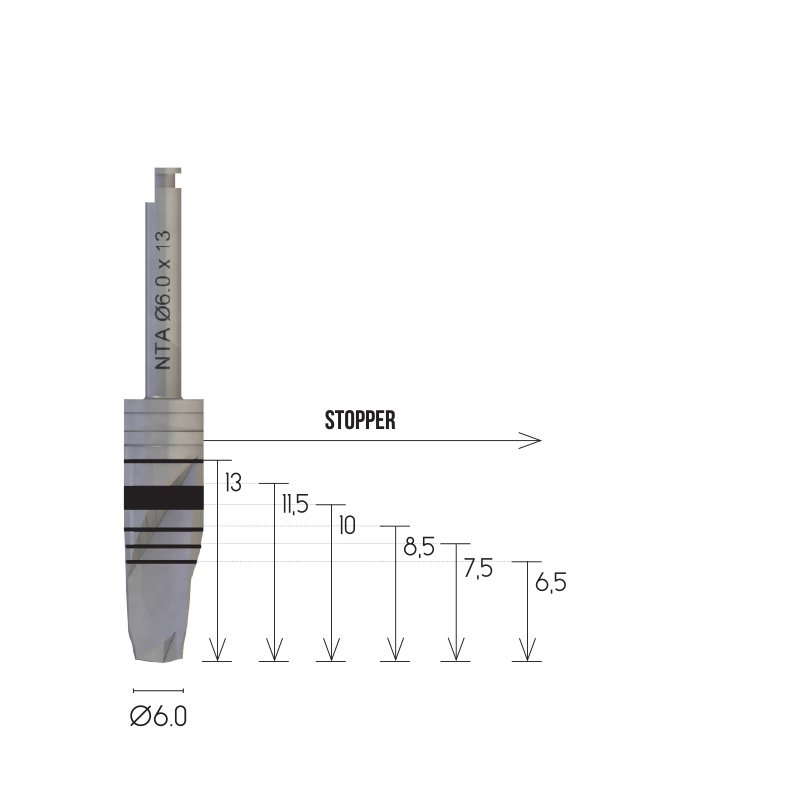

FINAL DRILL REGULAR Ø 6.0
NTA-0-8-01 Ø 6.0 x 13.0 mm

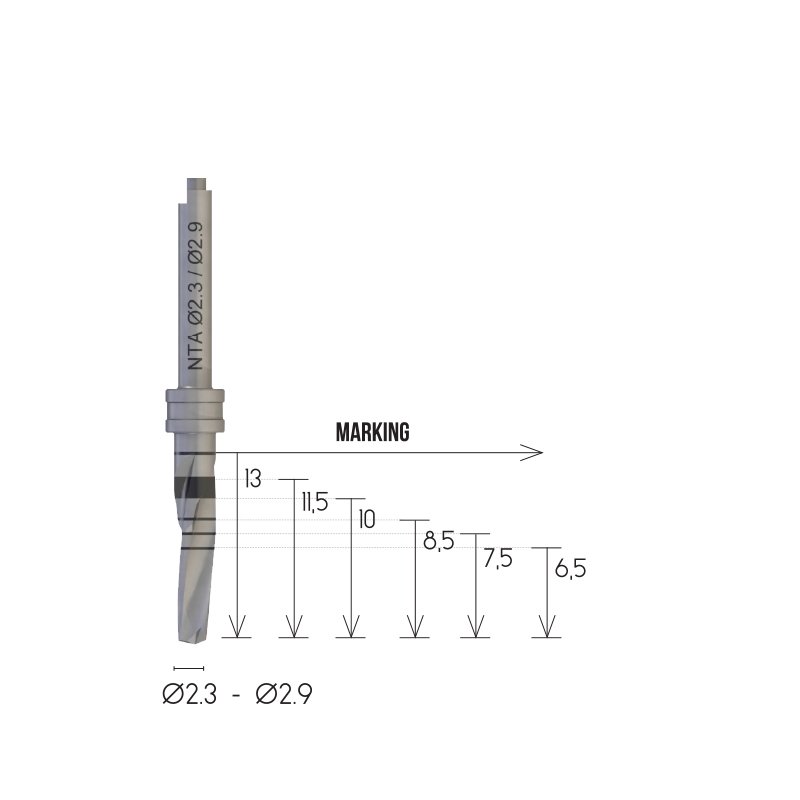

TAPERED DRILL
NTA-0-13-01 Ø 2.3 / 2.9

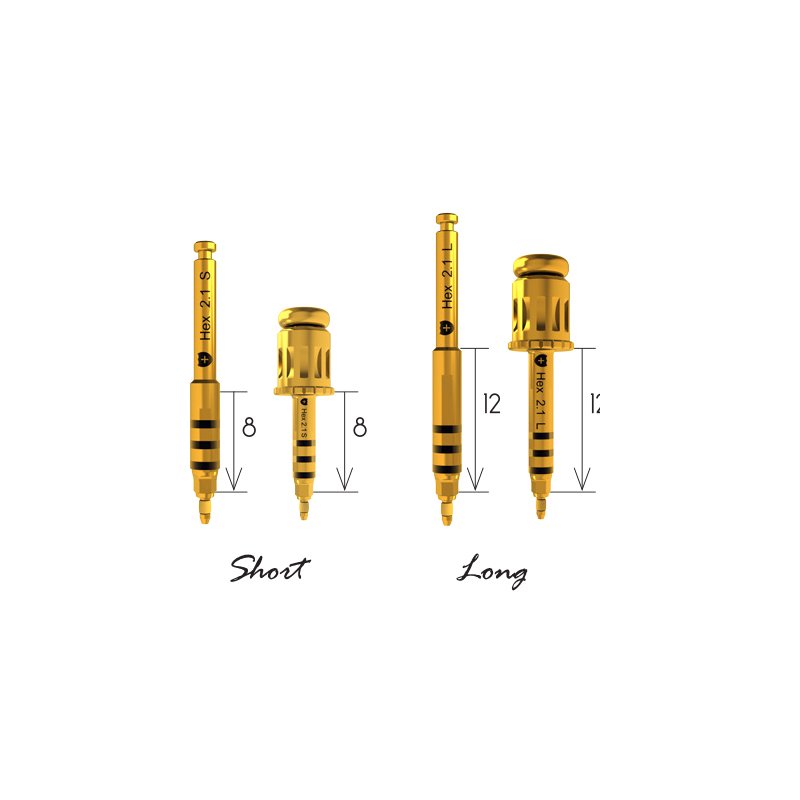

FIXTURE DRIVER NARROW
NTA-0-16-01 L Long Handpiece
NTA-0-16-02 L Long Manual
NTA-0-16-01 S Short Handpiece
NTA-0-16-02 S Short Manual
POINT DRILL
NTA-0-9-01 Ø 1.5
GUIDE DRILL
NTA-0-10-01 Ø 2.0
DRILL EXTENSION
NTA-0-11-01
TORQUE RATCHET
NTA-0-01-01

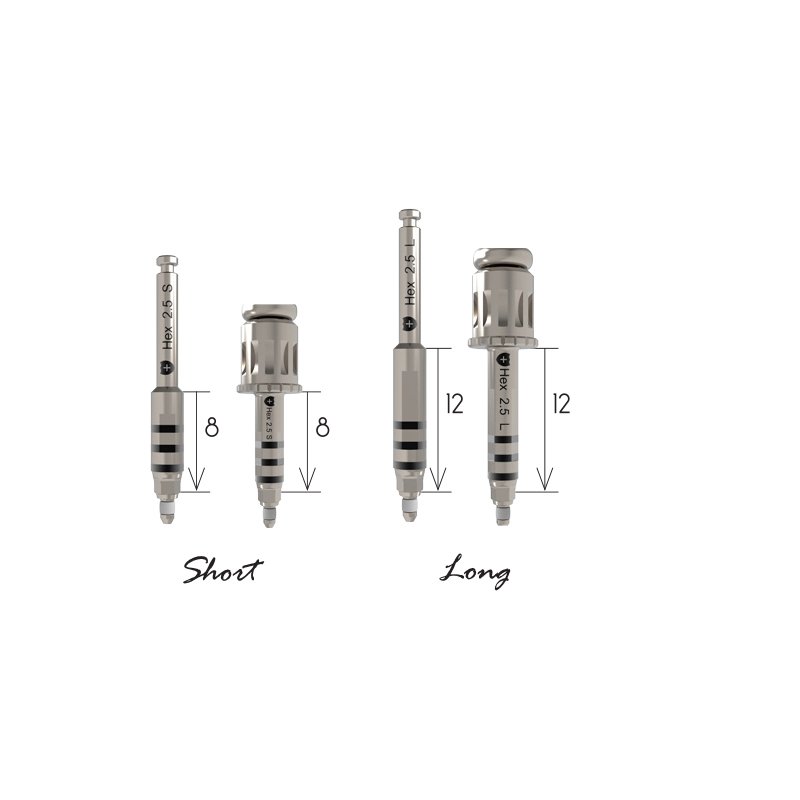

FIXTURE DRIVER REGULAR
NTA-0-15-01 L Long Handpiece
NTA-0-15-02 L Long Manual
NTA-0-15-01 S Short Handpiece
NTA-0-15-02 S Short Manual

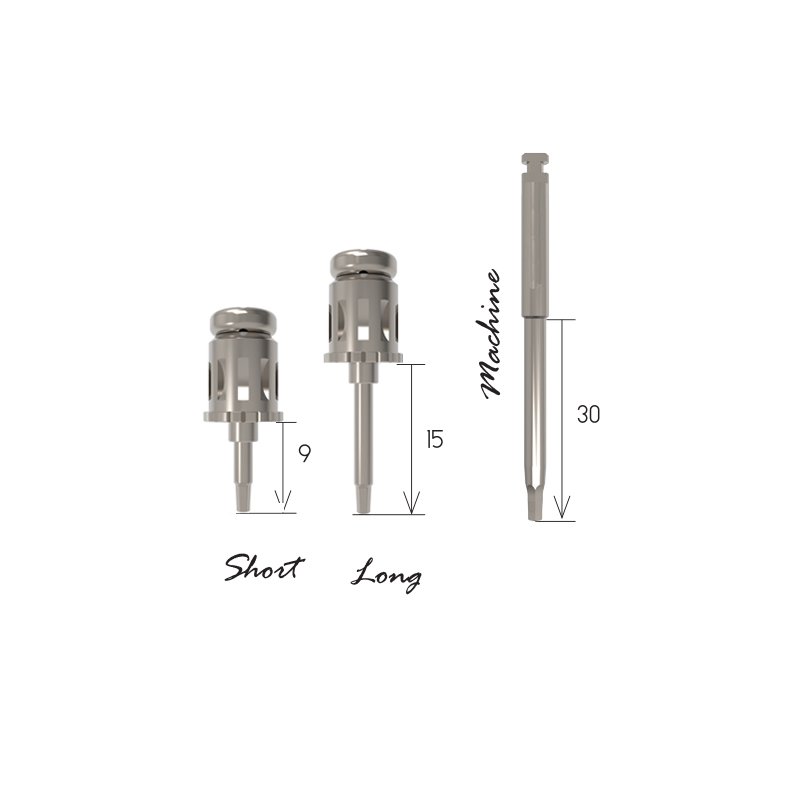

1.2 SCREW DRIVER
NTA-0-14-01 Short
NTA-0-14-02 Long

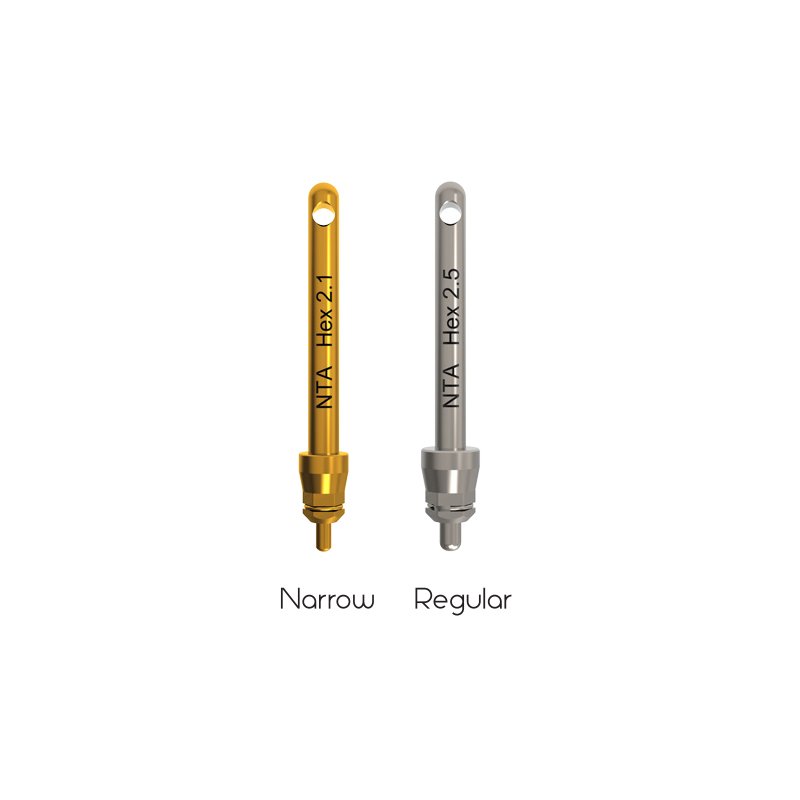

FIXTURE PIN
NTA-0-17-01 Narrow
NTA-0-17-02 Regular
DEPTH GAUGE
NTA-0-18-01
PARALLEL PIN
NTA-0-12-01 Ø 1.8 / Ø 2.0

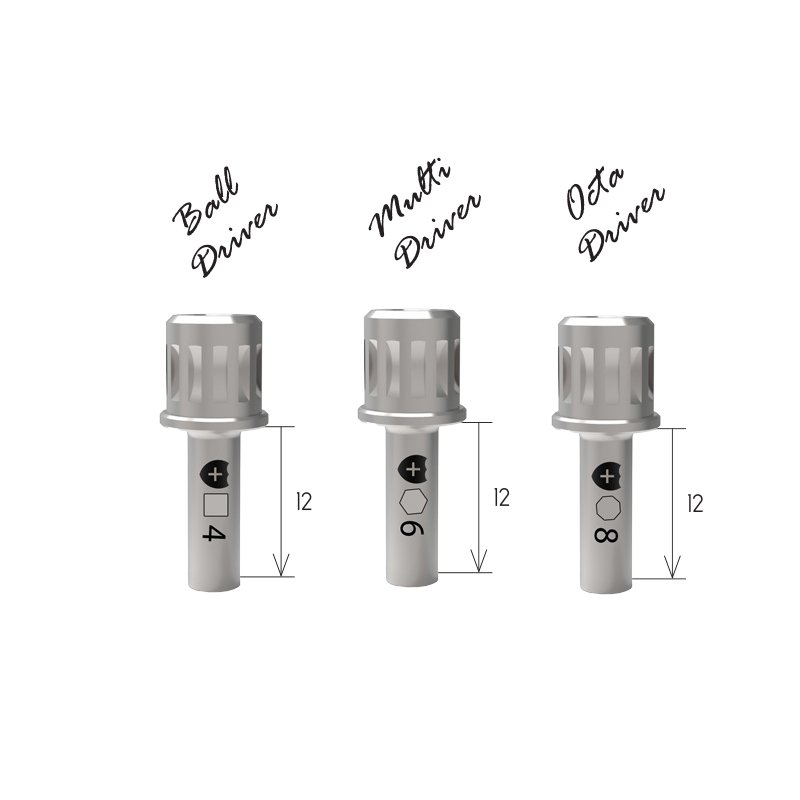

DRIVER
Multi driver product code: MAOD
Octa driver product code: OAOD
Ball driver product code: NTBAD
BROCHURES AND DOCUMENTS
NTA SURGICAL KIT PROTOCOL
Download the NTA Implant surgical kit protocol (drill sequence and instrument use).
ABT. SCREW REMOVER KIT
Open the NTA Abutment Screw Remover Kit PDF for specifications.
PROSTHETIC PLANNING KIT
Open the NTA Prosthetic Planning Kit PDF for specifications.
